SOLIDWORKS 2019 What’s New – Routing Enhancements: Inline Components – #SW2019

SOLIDWORKS Routing is a powerful tool that automates the creation of any type of piping, tubing or electrical route. When creating electrical routes, it’s common to have multiple wire routes joined together into one main route. SOLIDWORKS Routing makes this a piece of cake and here we can see an example of it.

, SOLIDWORKS 2019 What’s New – Routing Enhancements: Inline Components – #SW2019

What isn’t a piece of cake is trying to add a component to reinforce the “Y” junction. In previous releases, we may add a note to call this out on the Drawing. Or, if we’re feeling adventurous, try to assemble a component and line it up correctly.

SOLIDWORKS 2019 greatly simplifies this situation by introducing easy to add Inline Components. They’re just regular parts that don’t need routing specific features added to them. If they have an Axis, you can use them.

Here I have a label to identify the wires in the enclosure. As you can see, a standard part that I’m adding an Axis to.

, SOLIDWORKS 2019 What’s New – Routing Enhancements: Inline Components – #SW2019

To use this Inline Component, we’ll edit an existing Route and drag the part onto that Route. Use the Tab key to flip its orientation like any Routing component.

Note: I’ve created a custom Design Library folder named Inline Connectors but that it not required for this functionality.

, SOLIDWORKS 2019 What’s New – Routing Enhancements: Inline Components – #SW2019

Using Move Fitting with Triad allows easy rotation, or translation, along the length of the Route segment. Even when you move them, they stay aligned to the Route.

, SOLIDWORKS 2019 What’s New – Routing Enhancements: Inline Components – #SW2019

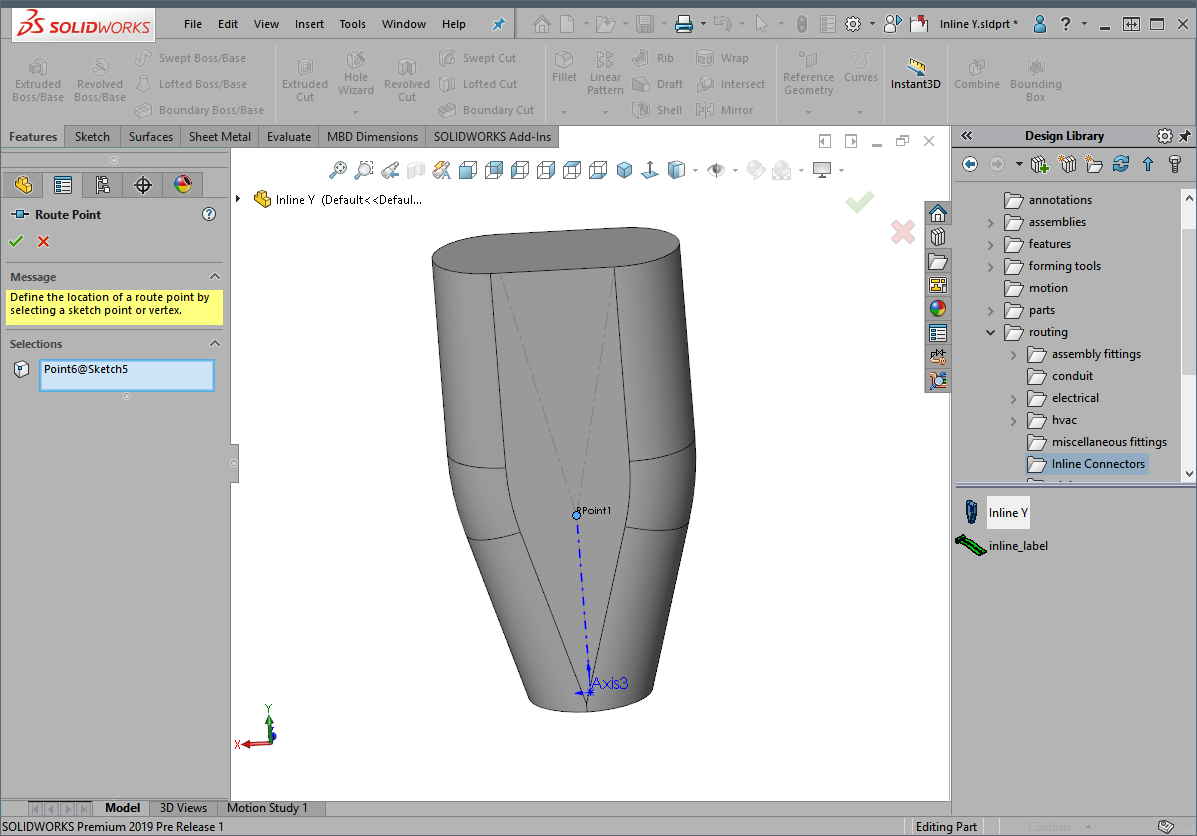

Let’s look at how we can easily address adding a reinforcement component to the “Y” junction in the Route. Adding a Route Point to an Inline Component will allow the part to automatically snap to any segment point on the Route.

, SOLIDWORKS 2019 What’s New – Routing Enhancements: Inline Components – #SW2019

The same workflow applies when using this Inline Component; edit the Route and drag and drop.

, SOLIDWORKS 2019 What’s New – Routing Enhancements: Inline Components – #SW2019

When this Inline Component is placed on the Route, the Align Components Property Manager allows the correct alignment. Simply select the Axis on the Inline Component, the route segment and click Apply. The Inline Component is now aligned with the Route! Of course, we want this part to show up in the BOM, so we select the “Add Component in BOM” selection. If you need to adjust the alignment, just Right Click the Inline Component and choose Edit Route Alignments.

, SOLIDWORKS 2019 What’s New – Routing Enhancements: Inline Components – #SW2019

I hope this part of the What’s New series gives you a better understanding of the new features and functions of SOLIDWORKS 2019. Please check back to the CATI Blog as the CATI Application Engineers will continue to break down many of the new items in SOLIDWORKS 2019. All these articles will be stored in the category of “SOLIDWORKS What’s New.”

Kris Dubuque
Field Technical Services Manager
Computer Aided Technology, LLC
