Programming Threaded Holes in SOLIDWORKS CAM

SOLIDWORKS CAM TutorialSOLIDWORKS CAM is an add-on to SOLIDWORKS CAD that is packed with a variety of features from 2.5 axis milling to 2 axis turning. A frequent question I receive from CAM users is “how do I create a toolpath for a threaded hole in SOLIDWORKS CAM?” There are two methods to accomplish the programming of a threaded hole in SOLIDWORKS CAM: starting with the hold wizard or starting with a simple extrude cut. In this blog, I’ll cover both of those methods. Let’s take a look.

Note: The following tutorial is for learning purposes only. For best results with SOLIDWORKS CAM, users must have an understanding of their machines, machining parameters, and machining concepts.

How to program a tapped hole with the SOLIDWORKS Hole Wizard

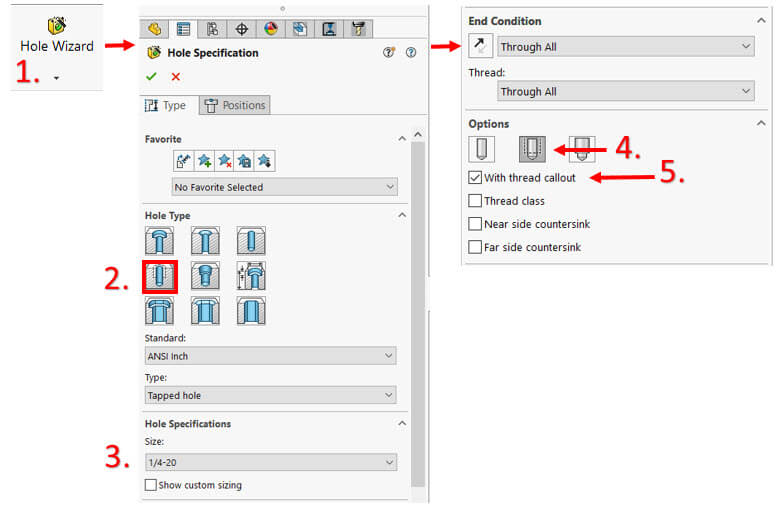

  1. Click “Hole Wizard” on the Features tab in the Command Manager.
  2. Select the “Straight Tap” option.
  3. Select all of the specifications needed for the tapped hole (e.g., size and end condition).
  4. Scroll down to the bottom of the Hole Wizard Property Manager to make sure “Cosmetic Thread” is selected.
  5. Make sure the “With Thread Callout” option is checked otherwise the tap program in SOLIDWORKS CAM will not function.
    program tapped hole SOLIDWORKS CAM

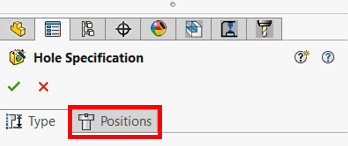

  6. Once the hole specifications are selected, choose the “Positions” tab at the top of the Hole Wizard property manager.
    with thread called SOLIDWORKS CAM
  7. Choose a face to place the tapped hole on.
  8. Click to place a hole or multiple holes.
  9. Hit “Escape” on your keyboard to stop adding holes.

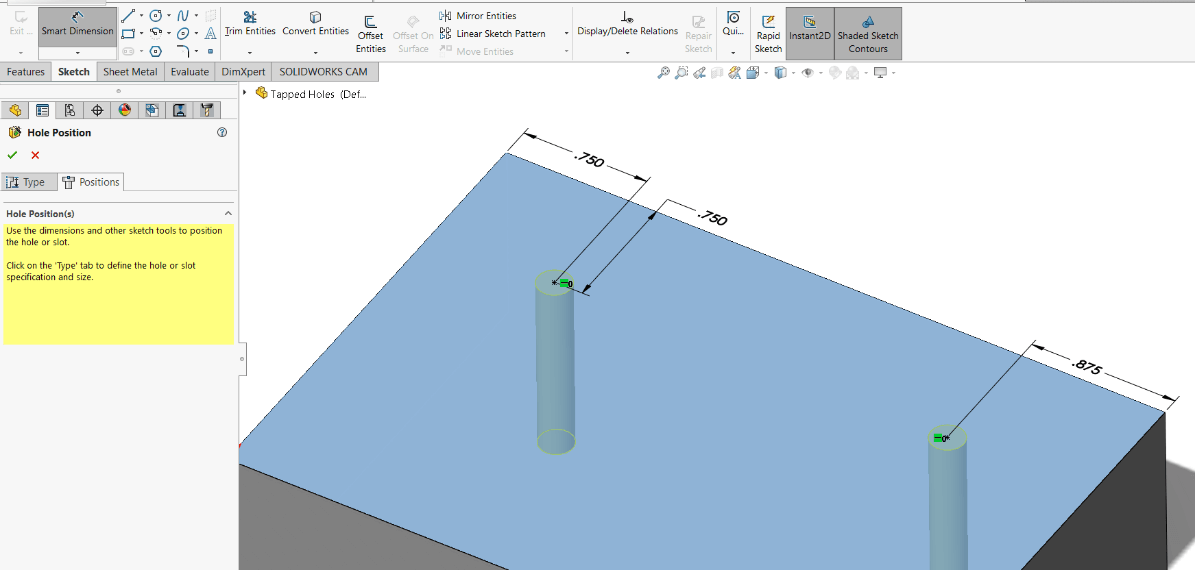

  10. The Hole Wizard tool is still active: choose “Smart Dimensions” to place dimensions on the center point of the new holes to position them. Relations can also be used.
  11. Click the green check to complete the command.
    Programming threaded holes SOLIDWORKS CAM

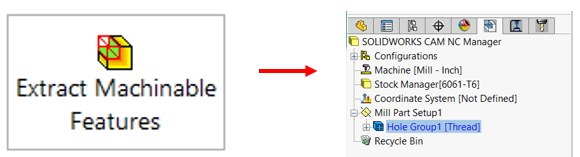

  12. Choose “Extract Machineable Features” from the SOLIDWORKS CAM tab.
    Extract Machineable Features SOLIDWORKS CAM

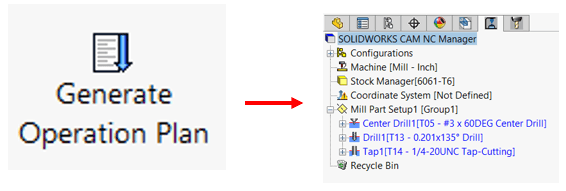

  13. Choose “Generate Operation Plan”.
    Generate option SOLIDWORKS CAM

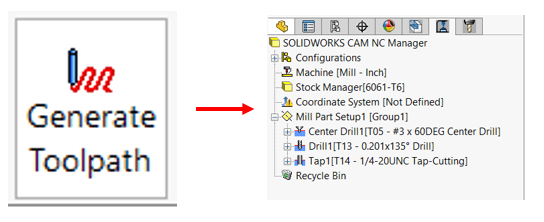

  14. Choose “Generate Toolpath”.
    Generate Toolpath option SOLIDWORKS CAM

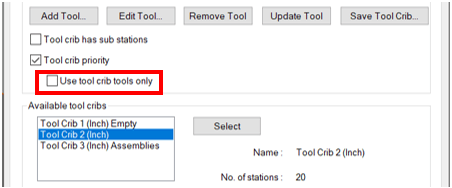

Tip: If you set your Toolcrib to “Use toolcrib tools only”, SOLIDWORKS CAM will not search outside of the specified Toolcrib to grab the correct tap cutter and drill for the minor diameter. If that’s what you intend, select that option, otherwise leave it blank so that SOLIDWORKS CAM can search the entire TechDB for the appropriate tap and a drill for the minor diameter.

Use toolcrib tools only SOLIDWORKS CAM

Program a tapped hole with a simple extrude cut

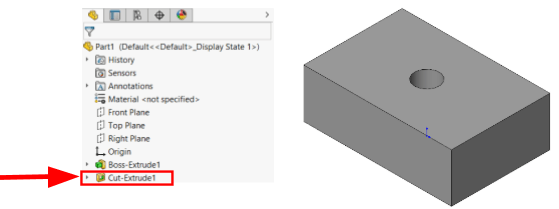

Notice that the hole found in the screenshot below was created using an extrude cut feature. This example shows a hole that is ¼” in diameter and the end condition of the cut is Through All.

Program a tapped hole with a simple extrude cut

  1. Click “Extract Machinable Features”. SOLIDWORKS CAM will choose Drill as the Strategy because the feature is just seen as a hole.
    Hole1 SOLIDWORKS CAM
    In order for SOLIDWORKS CAM to program this hole as a threaded hole, the strategy must be changed.
  2. Right-click on the Hole1 Feature in the SOLIDWORKS CAM Feature Tree.
  3. Choose Parameters… to open the Hole Parameters Dialogue box.
    Parameters SOLIDWORKS CAM
  4. Choose the “Thread Strategy” from the drop-down menu.
    Thread Strategy SOLIDWORKS CAM

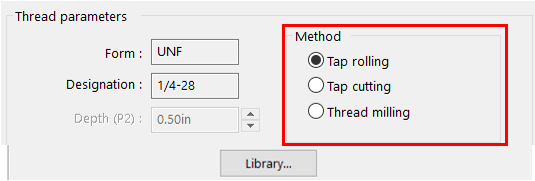

  5. In the Hole Parameters Dialogue box, users can also set the Threading Method:
     Hole Parameters Dialogue box SOLIDWORKS CAM
    Right now, the thread is set to ¼-28, but let’s say I want to use a ¼-20 thread. I need to change the thread to ¼-20.

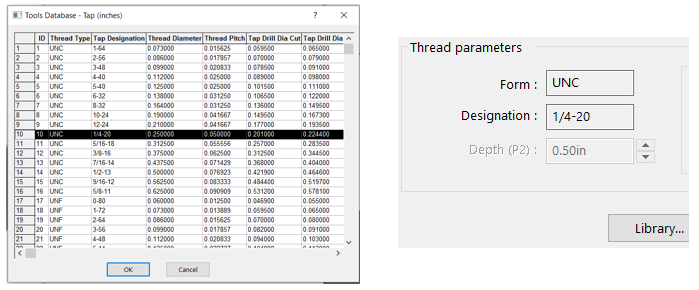

  6. Click “Library…”
  7. Choose the appropriate thread type and click OK then click OK again to exit out of Hole Parameters.Hole Parameters SOLIDWORKS CAM

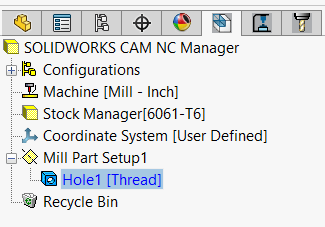

    Now the hole strategy in the SOLIDWORKS CAM Feature Tree should say Thread:
    SOLIDWORKS CAM Features tree

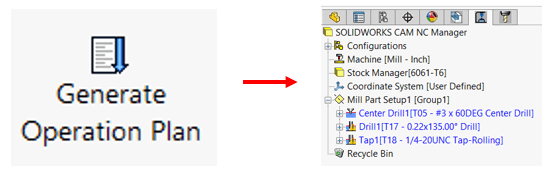

  8. Choose “Generate Operation Plan”.Generate operation plan SOLIDWORKS CAM tutorial

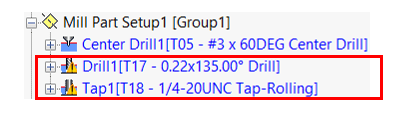

    Note: Any operation that has a tool warning icon in front of it means that SOLIDWORKS CAM had to go outside of the specified toolcrib (into the Technology Database) to get the appropriate tool. In my example, I did not have the appropriate tap or drill for the minor diameter of the hole in my specified toolcrib so SOLIDWORKS CAM went into the Technology Database to get them.
    SOLIDWORKS CAM Tutorial
  9. Choose “Generate Toolpath”.

The hole is now seen by SOLIDWORKS CAM as a threaded hole. For more SOLIDWORKS CAM tutorials subscribe to our blog. See you all next time.
