Deep Dive into Reverse Engineering a 3D Scanned Propeller

One of the main uses of 3D Scanners is reverse engineering, and this may seem like a daunting task. Today, we will be taking a look at this process and how we can accomplish this using VXmodel and SOLIDWORKS. For our example, we’ll be reverse engineering a propeller.

, Deep Dive into Reverse Engineering a 3D Scanned Propeller

Once we have our 3D scanned propeller, we need to properly align it so that the origin and planes correspond with our CAD system to avoid extra steps later on in the process. There is a difference in what each software considers to be an isometric view. This is something that has caught me a few times.

, Deep Dive into Reverse Engineering a 3D Scanned Propeller                                                        , Deep Dive into Reverse Engineering a 3D Scanned Propeller

     VXmodel                                                             SOLIDWORKS

SOLIDWORKS VXmodel
Front Plane XY Plane
Top Plane XZ Plane
Right Plane YZ Plane

For this file in particular, I had to create four planes and one cylinder to create my alignment.

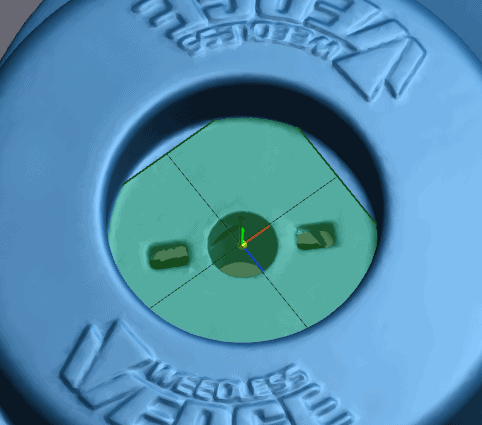

3D Scanner Plane from Triangle Selection

Plane 1 using Triangle Selection

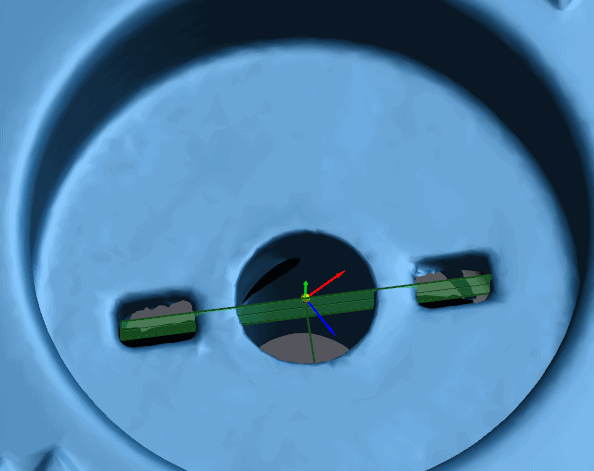

3D Scanner Plane from Triangle Selection

Plane 2 and 3 using Triangle Selection

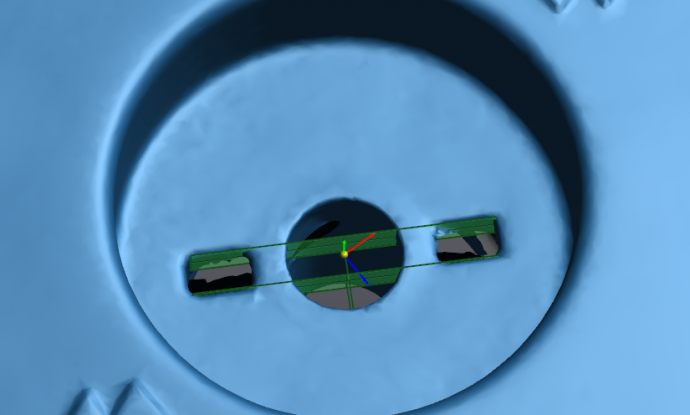

3D Scanner Plane from Triangle Selection

Plane 4 using Average Plane and Planes 2 and 3

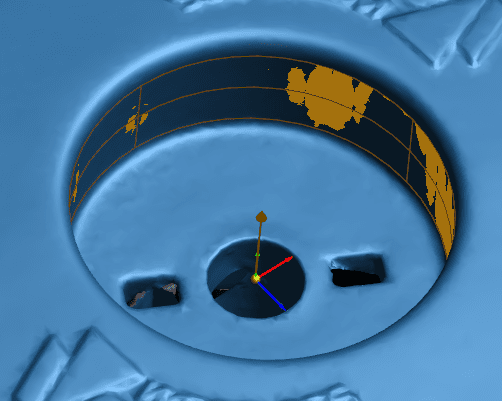

3D Scanner Cylinder Plane Selection

Cylinder 1 using Triangle Selection with Orientation aligned with Plane 1

Once these planes are created, I can create an alignment using “Align to Origin.”

, Deep Dive into Reverse Engineering a 3D Scanned Propeller

Now that our prop is aligned properly, we can begin reverse engineering it. We will start with the center portion. To guide this portion of the part I like to use a cross-section. In this case specifically, I’ll use a single radial cross-section offset 10 degrees off the “Origin-Plane XY.” Once the sketch is recreated, we need to revolve it around the central axis.

, Deep Dive into Reverse Engineering a 3D Scanned Propeller

To make the blades, we will use Single Patch surfaces and a Silhouette cross-section.

, Deep Dive into Reverse Engineering a 3D Scanned Propeller

Once the blade is created we can pattern it and combine them with the hub body.

, Deep Dive into Reverse Engineering a 3D Scanned Propeller

Now that the main body is complete, we can focus on the internal structure. We’ll start with a cross-section of the inside.

, Deep Dive into Reverse Engineering a 3D Scanned Propeller                          , Deep Dive into Reverse Engineering a 3D Scanned Propeller

Now that the cuts have been completed, we need to make the larger ribs. Using a single radial cross-section to find the geometry and two parallel planes to find the thickness. A circular pattern will fill in the other instances.

, Deep Dive into Reverse Engineering a 3D Scanned Propeller

We will then follow the same process to create the other smaller ribs.  And to finish we just need to add some fillets to round some of the edges.

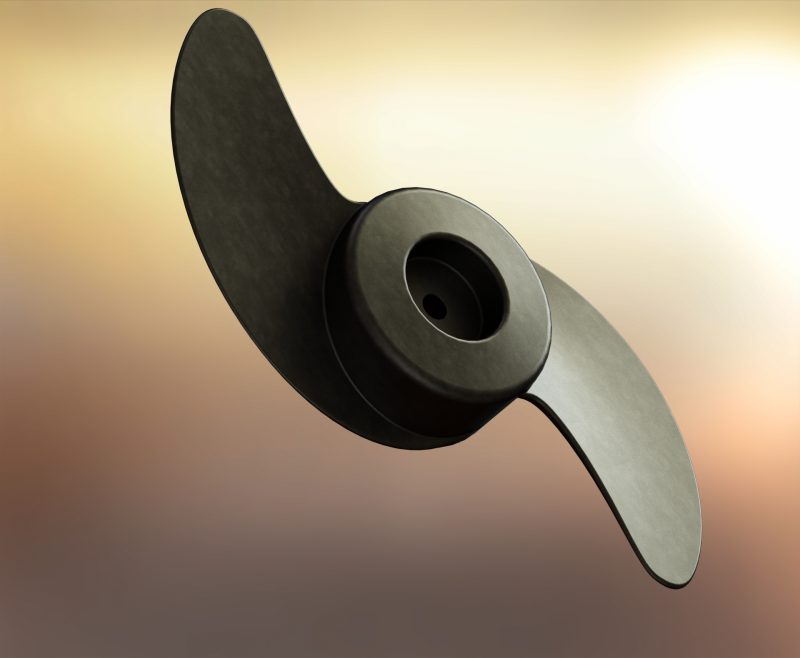

3D scanner reverse engineered product in solidworks

Completed Propeller
