Tips for Efficiently Creating and Navigating Drawings in SOLIDWORKS

Creating and navigating drawings can feel like a daunting task, especially the larger and more detailed they are. In this blog, we are going to look at a few tips to make creating and navigating drawings a little easier, specifically when working with drawing views in SOLIDWORKS.

Dragging a View

Dragging a view can sometimes be frustrating. You must hover over a view to get the bounding box to show up, then select the border, or select an edge of the model. A more convenient way of doing this is to hold down the ‘Alt’ key. With the ‘Alt’ key selected, selecting anywhere in the view moves it (except for on an annotation or view callouts, like a Detail Circle).

You can hold down the alt key to easily navigate around your drawings with a drag and drop.

Where is a View?

Getting all the information you need on a drawing may require creating multiple view types. This could include Parent/Child views, i.e., detail, section, and auxiliary views. This could also lead to multiple drawing sheets. Determining where an associated view is located can be tricky, especially on multi-sheet drawings. Enter, Location Labels. Location Labels indicate where a child’s parent view (or parent’s child view) is located on the drawing.

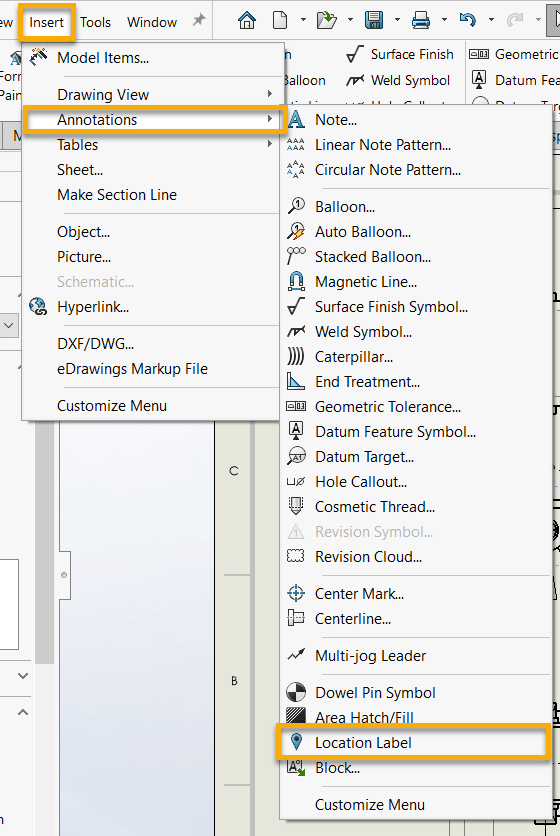

Graphical user interface, application Description automatically generated

Located under Insert 🡪 Annotations (or use the handy ‘Search Commands’ tool), simply select the view itself to add a Location Label to a child view.

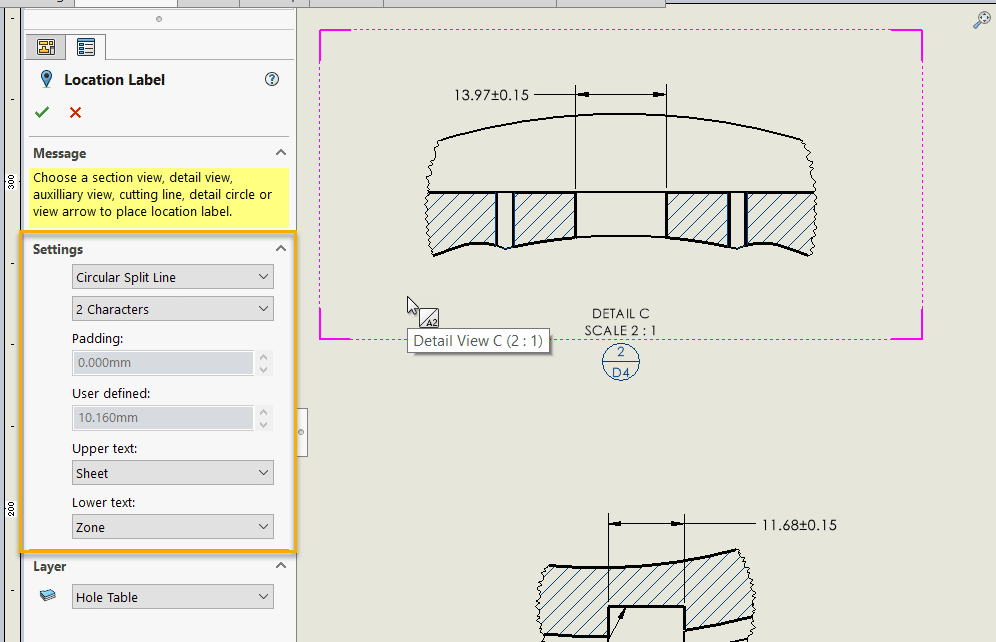

Diagram, engineering drawing Description automatically generated

To add one to a parent view, choose the detail circle, cutting line, or view arrow.

This is how you add a location label to a drawing, making navigation easier.

By default, the annotation will appear as a split balloon with the sheet number on top and the zone on the bottom. You can modify this in the Property Manager (see the previous 2 images). You can also change it in the Document Properties. Please note that this applies to any newly added Location Labels in the file.  And of course, you can save those changes into your templates for future use, if you want.

Creating new drawings can include a preset group of settings, ensuring you can create accurate drawings every time.

Wrapping Up

Knowing how to efficiently drag a view and create labels to effectively find a view will hopefully help make the creation and navigation of your drawings a little more manageable. These are just a few tips, but I also have a SOLIDWORKS drawings tips webinar you should check out. We also have thousands of videos on our YouTube channel and many more blogs to check out on our blog.



Ryan Field
Sr. Application Engineer
